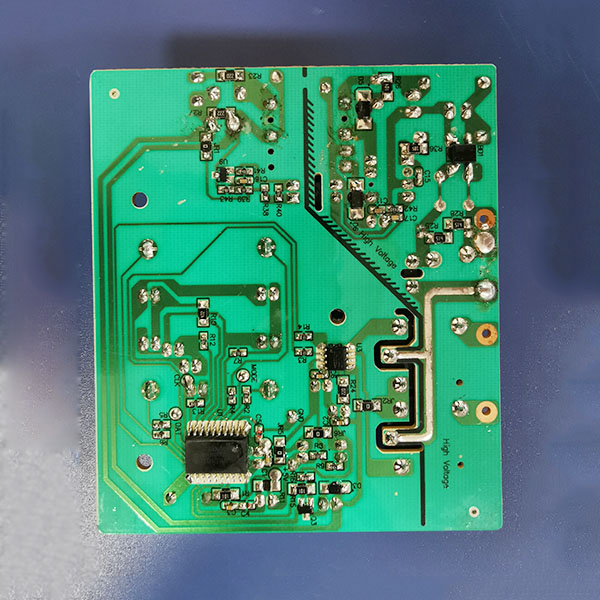

Dimensions and specifications
- Model: PS-800PM
- Size: 98.0 * 85.0 * 19.0 (mm)
- Input voltage: 110V AC
Product Description
- 1、 Basic warm air blower
- 2、 Install a tilt switch on the board to prevent the machine from blocking the air outlet due to tilting
- 3、 Two heating outputs allow for adjustable heating effects; 4、 Assembly temperature detection, real-time detection of air outlet temperature
- 5、 The heater panel has been applied in the market and meets the safety regulations and EMC certification standards of various countries
Socket and Pin Position Description
- 110VAC: Power Input (110V AC)
- COM: Connect the negative pole of the heating element
- L: Connect the positive electrode of heating element No.1
- H: Connect the positive electrode of the second heating element
- CN2: Power the fan (blow out warm air)
- CN1: Connect NTC (detect warm air temperature)
