Dimensions and specifications

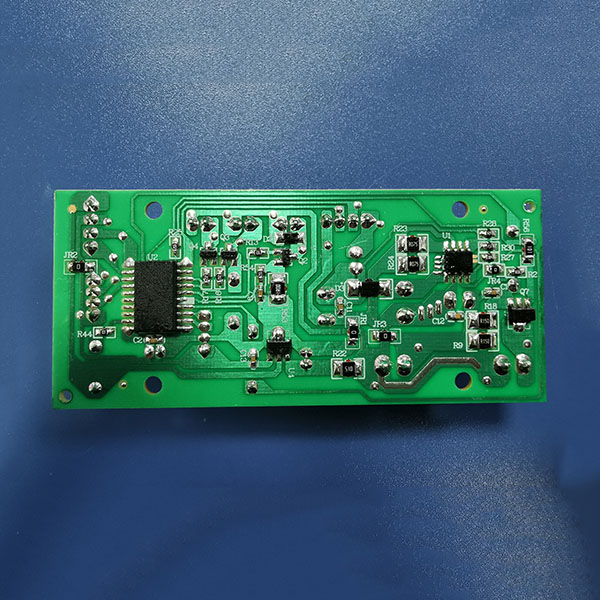

- Model: HC2466
- Size: 40.0 * 90.5 * 20.0 (mm)
- Input voltage: 15V DC
Product Description
- 1、 Dehumidification and humidification all-in-one machine, capable of accurately maintaining a constant temperature and humidity range in the environment
- 2、 Dehumidification function, equipped with water tank detection and water level detection, can prevent the water tank from overflowing when full
- 3、 Humidification function, external atomization module, easy to assemble
- 4、 The integrated dehumidification and humidification board has been applied in the market and meets the safety regulations and EMC certification standards of various countries
Socket and Pin Position Description
- CN9: Power input (15V DC)
- CN8: Supply power to negative oxygen ions
- CN7: Power supply for humidification fan
- CN1: Supply power to the refrigeration unit (dehumidification)
- CN3: Connect Hall board (detect dehumidification water tank and water level)
- CN5: Power supply for dehumidification fan
- CN12: Connect and control atomization module (control humidification function)
- CN6: Connect the keypad (power supply and signal transmission)
