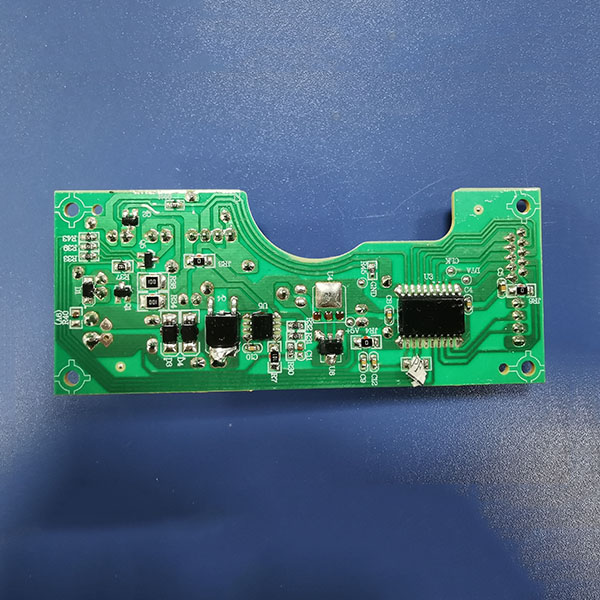

【Origin Pic】
Dimensions and specifications
  • Model: HD012
  • Size: 40.0 * 90.5 * 20.0 (mm)
  • Input voltage: 24V DC
Product Description
  • 1、 Dehumidification and humidification all-in-one machine, capable of accurately maintaining a constant temperature and humidity range in the environment
  • 2、 Dehumidification function, equipped with water tank detection and water level detection, can prevent the water tank from overflowing when full
  • 3、 Illuminate the water level of the dehumidification water tank with a UV lamp, and check the dehumidification effect at any time
  • 4、 The integrated dehumidification and humidification board has been applied in the market and meets the safety regulations and EMC certification standards of various countries
Socket and Pin Position Description
  • CN16: Connect and control the atomization module, while also providing power input (24V DC)
  • CN3: Power supply for humidification fan
  • CN7: Supply power to negative oxygen ions
  • CN1: Supply power to the refrigeration unit (dehumidification)
  • CN2: Power supply for dehumidification fan
  • CN4: Power supply for UV board (UV lamp power supply, dehumidification water tank and water level signal transmission)
  • CN9: Connect the keypad (power supply and signal transmission)
