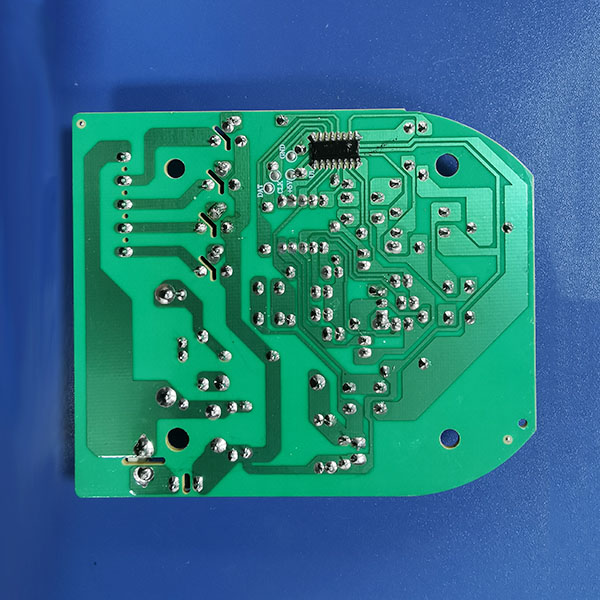

Dimensions and specifications
  • Model: H16R
  • Size: 83.0 * 99.0 * 17.0 (mm)
  • Input voltage: 100-240 V AC
Product Description
  • 1、 Basic AC fan
  • 2、 Remote control and button dual control make operation more convenient
  • 3、 Integrated board, no need to equip an independent power board, easy and fast installation
  • 4、 The fan board has been applied in the market and meets the safety regulations and EMC certification standards of various countries
Socket and Pin Position Description
  • CN3: Power input (100-240V AC)
  • CN1: Connect the fan motor
  • COM: Motor power input negative pole
  • OSC: Shake head motor signal
  • H: High end signal transmission
  • M: Mid range signal transmission
  • L: Low level signal transmission
