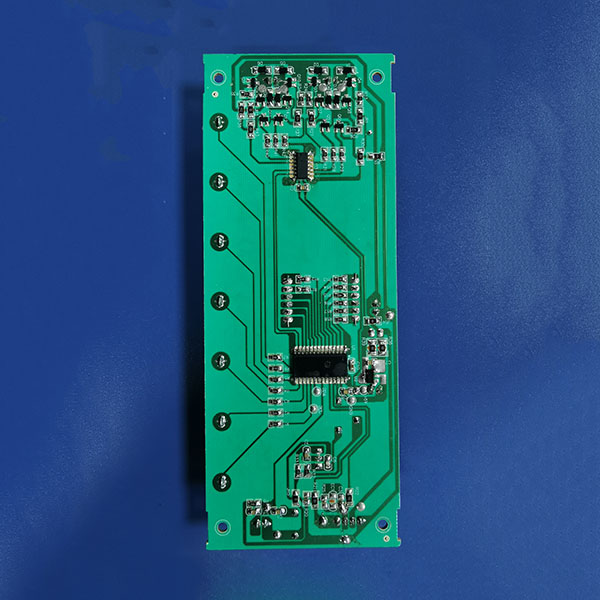

Dimensions and specifications
  • Model: PC-200DCR
  • Size: 65.0 * 165.5 * 15.0 (mm)
  • Input voltage: 24V DC
Product Description
  • 1、 Composite DC fan
  • 2、 Remote control and button dual control make operation more convenient
  • 3、 Two shaking motors to expand the blowing area
  • 4、 NTC probe allows for diverse function settings and can automatically adjust the fan speed when the ambient temperature is turned off
  • 5、 The fan board has been applied in the market and meets the safety regulations and EMC certification standards of various countries
Socket and Pin Position Description
  • CN11: Power input (24V DC)
  • NTC1: Detecting environmental temperature signal
  • CN9: Up and down shaking output (synchronous motor)
  • CN10: Left and right shaking output (synchronous motor)
  • CN8: Connect the fan motor (24VDC)
  • GND: Motor power input negative pole
  • VDD: Motor power input positive pole
  • V_SP: Motor PWM signal
  • F_G: Motor working feedback voltage signal
