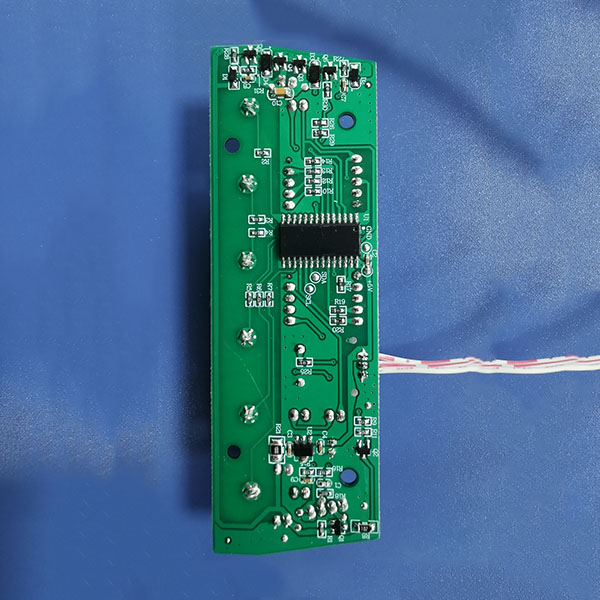

【Origin Pic】
Dimensions and specifications
  • Model: PS-12BRDC
  • Size: 38.0 * 116.5 * 18.0 (mm)
  • Input voltage: 24V DC
Product Description
  • 1、 Universal DC fan
  • 2、 Remote control and button dual control make operation more convenient
  • 3、 Synchronous motor to increase the blowing area
  • 4、 The fan board has been applied in the market and meets the safety regulations and EMC certification standards of various countries
Socket and Pin Position Description
  • CN2: Power input (24V DC)
  • CN4: Supply power to the remote control receiver head board
  • CN3: Shake head output (synchronous motor)
  • CN1: Connect the fan motor (24VDC)
  • GND: Negative pole of motor power input
  • VCC: Motor power input positive pole
  • PWM: Motor PWM signal
  • FG: Motor working feedback voltage signal
