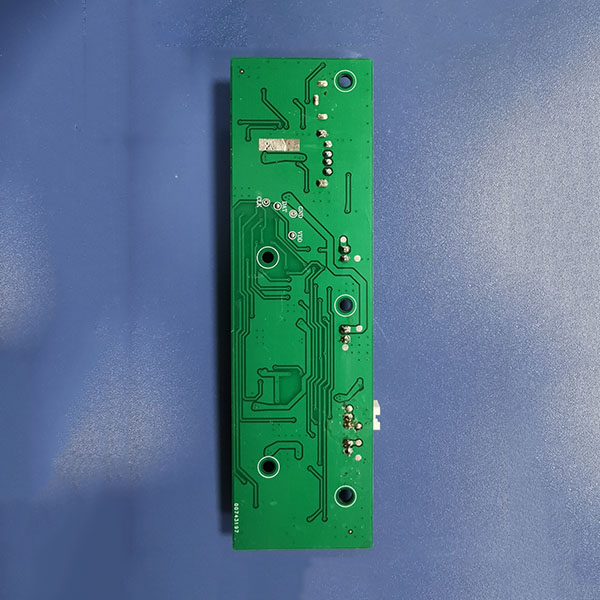

【Origin Pic】
Dimensions and specifications
  • Model: PS-560
  • Size: 37.0 * 128.0 * 12.5 (mm)
  • Input voltage: 5 V DC
Product Description
  • 1、 Multi functional 5VDC charging model
  • 2、 Equipped with USB charging and solar charging, the dual charging method is more widely applicable and convenient in various places
  • 3、 USB2 output terminal, which can use the fan as a miniature portable power bank
  • 4、 The fan board has been applied in the market
Socket and Pin Position Description
  • CN3: Connect rechargeable battery (5V DC)
  • CN1: Charging input (solar charging panel)
  • USB1: Charging input (TYPC interface)
  • USB2: Discharge output
  • CN2: Fan output
  • CN6: Light bar output
