Dimensions and specifications
- Model: PS-155AP
- Size: 78.0 * 81.0 * 23.0 (mm)
- Input voltage: 24V DC
Product Description
- 1、 Basic air purifier
- 2、 Remote control and button dual control make operation more convenient
- 3、 Real time detection and regulation of dust content and temperature and humidity data in the air
- 4、 The air purifier board has been applied in the market and meets the safety regulations and EMC certification standards of various countries

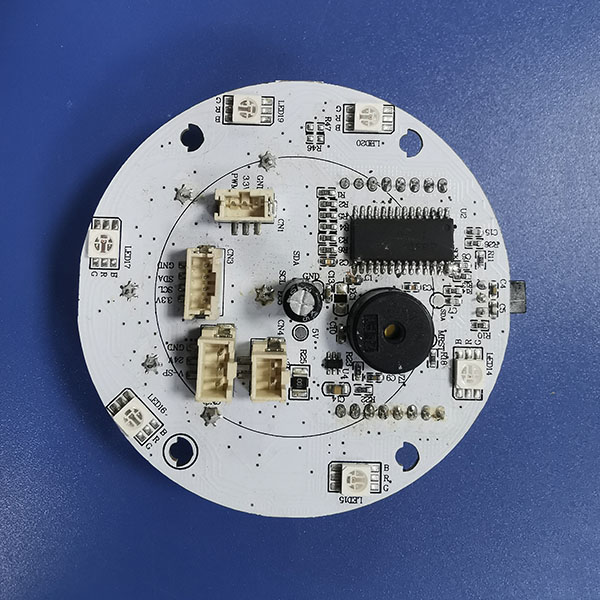

Socket and Pin Position Description
- CN4: Power input (24V DC)
- CN3: Power supply for temperature and humidity sensor board (transmission of ambient air temperature and humidity data)
- CN1: Power supply for dust sensor (transmission of ambient air dust content data)
- CN2: Power the fan (adjust the fan speed)
