Dimensions and specifications

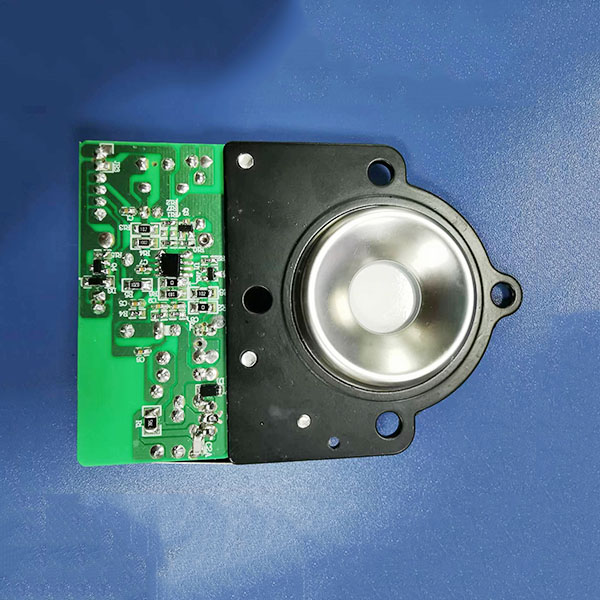

- Model: HY-HW225E
- Size: 72.0 * 98.0 * 24.5 (mm)
- Input voltage: 22.0-27.0 V DC
- Atomization power (atomization amount): 24.0 W (≤ 300mL/H)
- Corrosion resistant atomizer: 20mm, 1.7M/2.4MHz (frequency optional)
Product Description
- 1、 Enhanced anti-corrosion atomization module, 316 stainless steel cover and strong anti-corrosion atomization plate, suitable for all kinds of physical therapy, disinfection and sterilization and medical products
- 2、 Equipped with atomization plate dry burning water shortage protection signal output and dry reed tube water shortage detection, dual protection (can choose one)
- 3、 Widely applied in the market and meeting medical grade standards
- 4、 The atomization module complies with safety regulations and EMC certification standards
Socket and Pin Position Description
- CN6: Power input (24V DC)
- CN1: Fan output (12/24V DC)
- S1: Connect the reed switch (detect the water level signal of the water tank to prevent dry burning)
- CN2: Connect the control board
- +24V -- positive input of atomization power supply
- +12V - Fan power input positive pole
- GND -- Negative input of atomization power supply
- DET - Dry burning protection output signal
- FOG - Fog Volume Adjustment
- FAN -- Fan control signal input
