Dimensions and specifications

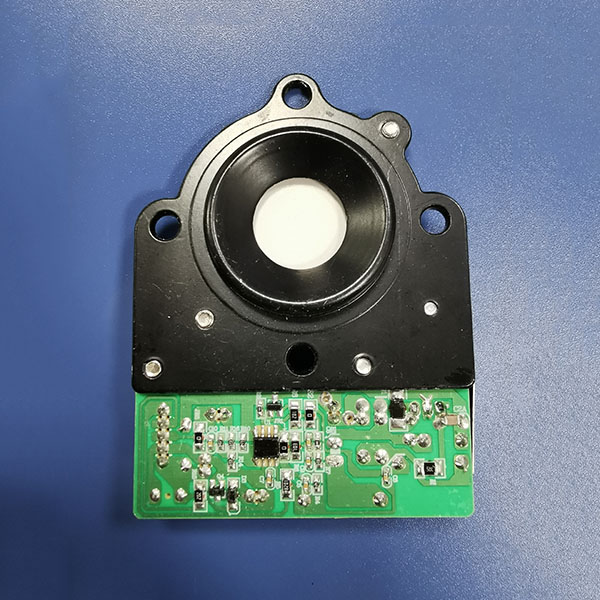

- Model: HY-HW228E
- Size: 68.5 * 93.0 * 24.0 (mm)
- Input voltage: 22.0-27.0 V DC
- Atomization power (atomization amount): 24.0 W (≤ 300mL/H)
- Atomizing film: ɸ 25mm, 1.7M/2.4MHz (frequency optional)
Product Description
- 1、 Universal, suitable for various ultrasonic atomization products
- 2、 Equipped with atomization plate dry burning water shortage protection signal output and passive dry reed tube water shortage detection, dual protection
- 3、 The atomization module complies with safety regulations and EMC certification standards
Socket and Pin Position Description
- CN6: Power input (24V DC)
- CN1: Fan output (24V DC)
- S1: Connect the reed switch (detect the water level signal of the water tank to prevent dry burning)
- CN2: Connect the control board
- +24V -- positive input of atomization power supply
- GND -- Negative input of atomization power supply
- DET - Dry burning protection output signal
- FOG - Fog Volume Adjustment
- FAN -- Fan control signal input
