Dimensions and specifications

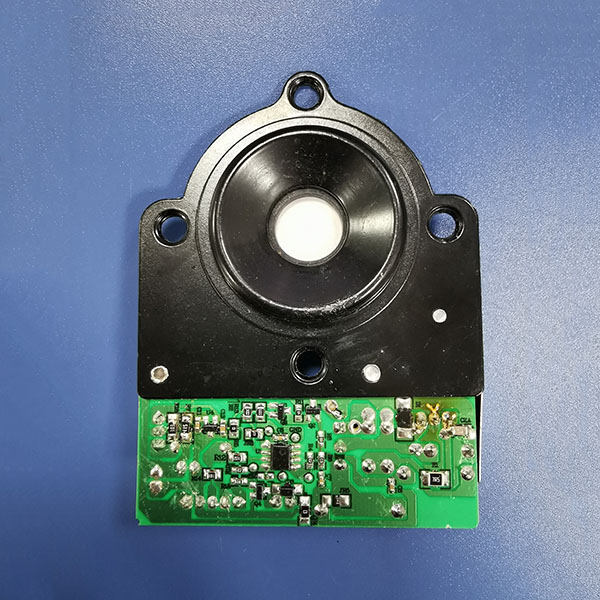

- Model: HY-HW316E
- Size: 68.5 * 93.0 * 24.0 (mm)
- Input voltage: 22.0-27.0 V DC
- Atomization power (atomization amount): 24.0 W (≤ 300mL/H)
- Atomizing film: 20mm, 1.7M/2.4MHz (frequency optional)
Product Description
- 1、 Universal, suitable for various ultrasonic atomization products
- 2、 Active water shortage protection, with automatic shutdown protection function for water shortage, and output water shortage signal. It also has Hall water shortage detection, dual protection, and more stable and reliable performance
- 3、 This module has strong compatibility and complies with safety regulations and EMC certification standards
Socket and Pin Position Description
- CN3: Power input (24V DC)
- CN1: Fan output (24V DC)
- CN6: Connect the Hall board (detect the water level signal of the water tank to prevent dry burning)
- CN2: Connect the control board
- +24V -- positive input of atomization power supply
- GND -- Negative input of atomization power supply
- DET - Dry burning protection output signal
- FOG - Fog Volume Adjustment
- FAN -- Fan control signal input
