Dimensions and specifications

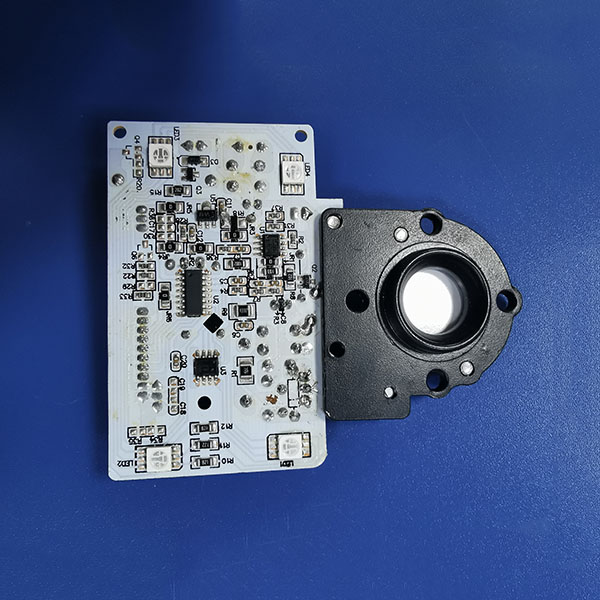

- Model: HY-42ML
- Size: 53.5 * 7 8 5 * 26.5(mm)
- Input voltage: 22.0-27.0 V DC
- Atomization power (atomization amount): 24.0 W (≤ 300mL/H)
- Atomizing film: 20mm, 1.7M/2.4MHz (frequency optional)
Product Description
- 1、 Universal, suitable for various ultrasonic atomization products
- 2、 Active water shortage protection, with automatic shutdown protection function for water shortage, and equipped with reed switch water shortage detection, dual protection, more stable and reliable performance
- 3、 Integrated light atomization, which can set the lighting atmosphere
- 4、 This module has strong compatibility and complies with safety regulations and EMC certification standards
Socket and Pin Position Description
- CN6: Power input (24V DC)
- CN1: Fan output (24V DC)
- K: Connect the reed switch (detect the water level signal of the water tank to prevent dry burning)
- CN7: Can be connected to remote control or Hall (+5V)
- CN4: Connect the control board and select control mode: touch control, button control, or encoder control
- S - As a+5V power supply or controlling CN7 power supply
- GND - Negative pole of keypad
- V+---- Supply power to the keypad+5V
- The other pins are communication pins
