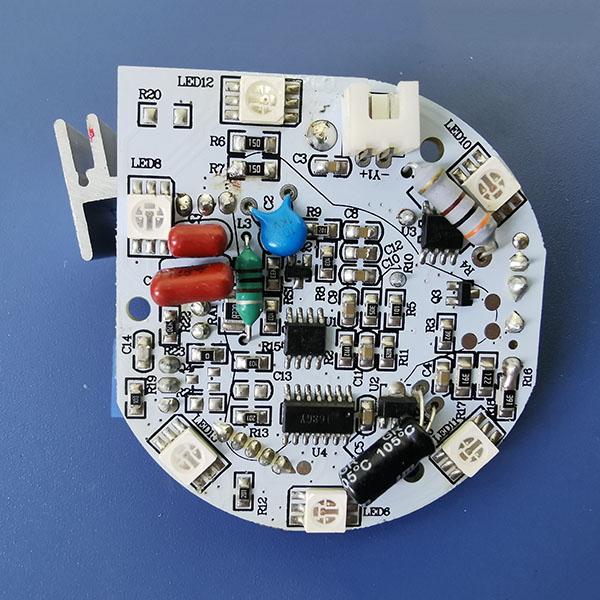

Dimensions and specifications
- Model: HY6G
- Size: 56.0 * 60.5 * 28.5 (mm)
- Input voltage: 24.0 V DC
- Atomization power (atomization amount): 12.0 W (≤ 35mL/H)
- Atomization frequency: 2.4MHz
Product Description
- 1、 Universal, suitable for various ultrasonic atomization products
- 2、 Equipped with atomized sheet dry burning protection
- 3、 CN5 external receiver head with remote control function
- 4、 This atomized motherboard has been widely used in the market and meets safety regulations and EMC certification standards
Socket and Pin Position Description
- CN2: Power input (24V DC)
- CN1: Fan output (12V/24V DC)
- Y1: Atomization output
- CN5: External receiver head
- CN3: Connect the control board
- GND -- Connect the negative terminal of the keypad
- Other foot positions - signal transmission
