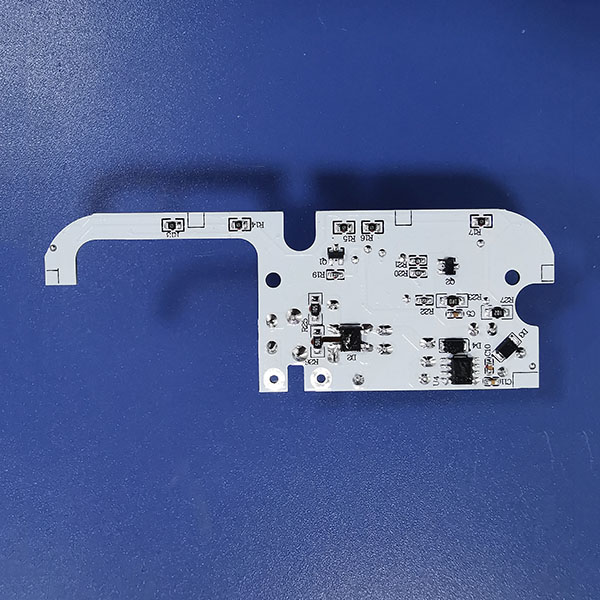

Dimensions and specifications
- Model: K708
- Size: 97.0 * 34.0 * 20.0 (mm)
- Input voltage: 100-240 V AC
Product Description
- 1、 Easy to communicate, suitable for various pure essential oil pump aromatherapy products
- 2、 Working principle: Use an air pump to extract essential oil, disperse it, and blend it into the air
- 3、 The aromatherapy motherboard has been applied in the market and meets safety regulations and EMC certification standards
Socket and Pin Position Description
- ACL/ACN: Power Input (100-240 V AC)
- CN3: Connect the air pump (5V DC)
- CN4: Connect the control board
- GND -- Connect the negative terminal of the keypad
- +5V - Supply 5V power to the keypad
- PU/AD - Air pump detection signal output
- PumP - Air pump signal input
- LED - Light signal input
