Dimensions and specifications

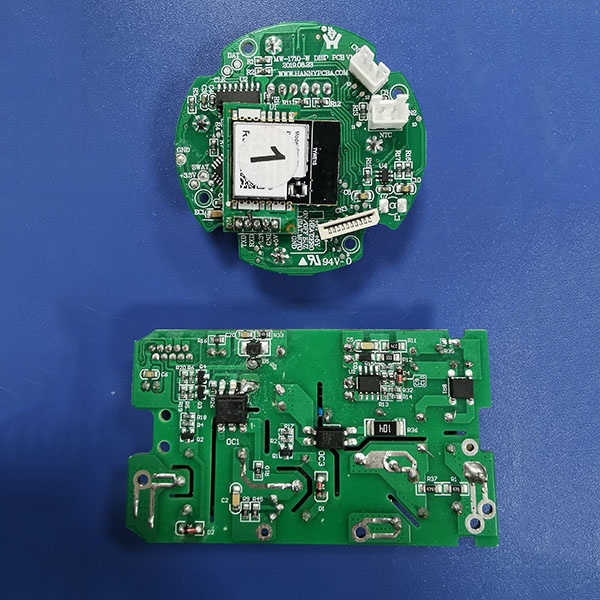

- Model: MW-1710
- Control board size: 57.5 * 57.5 * 18.5 (mm)
- Power board size: 83.0 * 47.0 * 20.5 (mm)
- Input voltage: 100-240 V AC
Product Description
- 1、 Universal slow cooker
- 2、 Built in module with networking function, operated through online APP, more convenient and efficient
- 3、 This slow cooker board has been widely used in the market and meets safety regulations and EMC certification standards in various countries
Socket and Pin Position Description
- ACL/ACN: Power Input (Solder Wire)
- H1/H2: Heating output (wire bonding)
- M1/M2: Motor output (wire bonding)
- Header: Water level detection
- MAIN: Connect the control board
- CN3: Connect the power board
- CN2: Connect NTC
- CN1: External indicator light
App
