Dimensions and specifications
- Model: SV-8002
- Control board size: 53.0 * 53.0 * 17.0 (mm)
- Power board size: 68.0 * 43.0 * 38.0 (mm)
- Input voltage: 100-240 V AC
Product Description
- 1、 Universal slow cooker
- 2、 Built in module with networking function, operated through online APP, more convenient and efficient

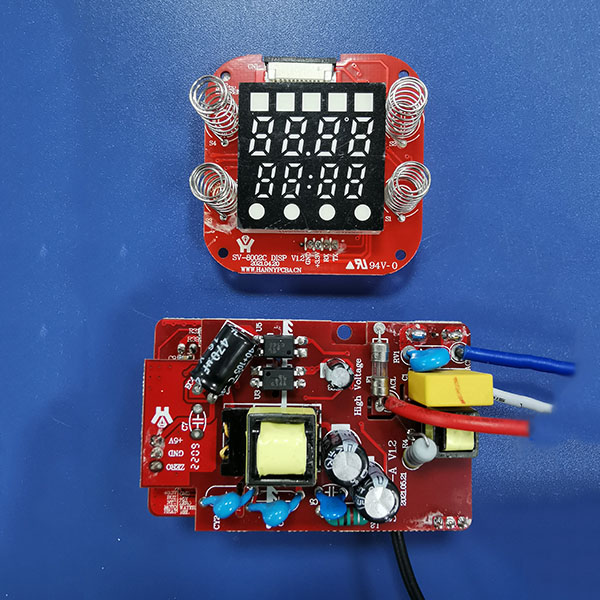

- 3、 The power board is composed of two boards, which separate high and low voltage and reduce the size of the board frame, making the shell design more flexible
- 4、 This slow cooker board has been widely used in the market and meets safety regulations and EMC certification standards in various countries
Socket and Pin Position Description
- ACL/ACN: Power Input (Solder Wire)
- HEAT L/HEAT N: Heating output (solder wire)
- CN6: Motor output (wire bonding)
- CN8: Water level detection
- CN9: Temperature detection
- BUZ: Connect buzzer
- CN7: Connect the control board
- CN1: Connect the power board
