Dimensions and specifications

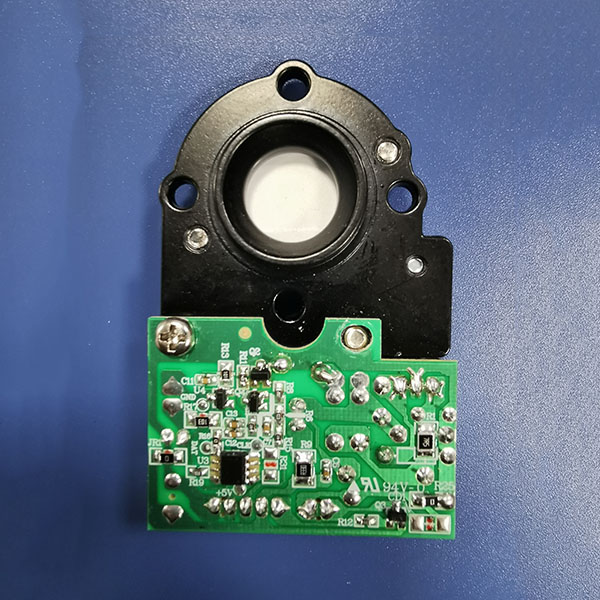

- Model: HY-WH108
- Size: 51.0 * 78.5 * 16.5 (mm)
- Input voltage: 22.0-27.0 V DC
- Atomization power (atomization amount): 24.0 W (≤ 250mL/H)
- Atomizing film: 20mm, 1.7M/2.4MHz (frequency optional)
Product Description
- 1、 MINI model, with ultra small structural design, can adapt to various compact products
- 2、 Active water shortage protection, with automatic shutdown protection function for water shortage, and output water shortage signal. At the same time, it has a reed switch water shortage detection, dual protection, and more stable and reliable performance
- 3、 This module has ultra-high cost-effectiveness and complies with safety regulations and EMC certification standards
Socket and Pin Position Description
- CN4: Power input (24V DC)
- CN2: Fan output (12V/24V DC)
- CN6: Connect the reed switch (detect the water level signal of the water tank to prevent dry burning)
- CN2: Connect the control board
- +24V -- positive input of atomization power supply
- FOG - Fog Volume Adjustment
- DET - Dry burning protection output signal
- GND -- Negative input of atomization power supply
- FAN -- Fan control signal input
