Dimensions and specifications

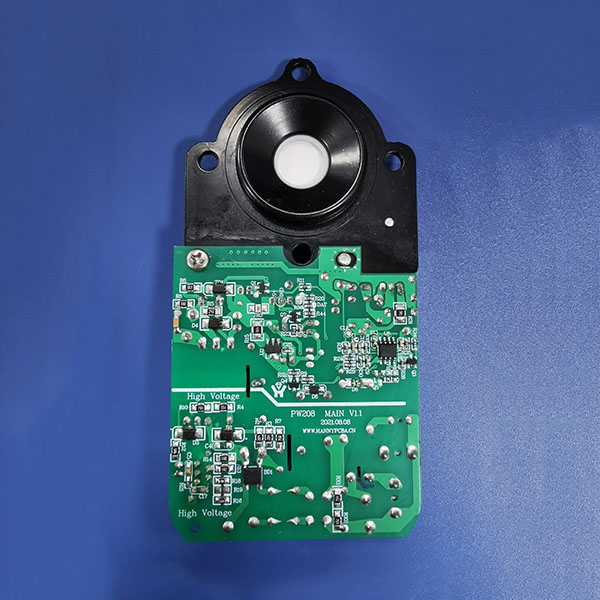

- Model: PW208
- Size: 71.0 * 139.5 * 26.5 (mm)
- Input voltage: 100.0-240.0 V AC
- Atomization power (atomization amount): 24.0 W (≤ 450mL/H)
- Atomizing film: 20mm, 1.7M/2.4MHz (frequency optional)
Product Description
- 1、 Integrated board of power supply, atomization and constant temperature, with large humidification capacity, clean mist, and healthier
- 2、 Strong product scalability, rich interfaces, and more convenient assembly of finished products
- 3、 Various functions can be customized according to customer needs
- 4、 This module complies with safety regulations and EMC certification standards
Socket and Pin Position Description
- AC IN: Power input (100-240V AC)
- CN4: Heating output (100-240V AC)
- CN11: Connect NTC (detect water tank temperature)
- CN2: Fan output (12V DC)
- CN3: Connect the control board
- +5V - positive pole of atomization power supply
- GND -- Negative pole of atomization power supply
- T - Signal transmission
- R - Signal transmission
Reserved socket
- CN8: Output negative oxygen ions
- CN6: Connect the Hall board (detect the water level signal of the water tank to prevent dry burning)
- CN5: Motor output (100-240V AC)
