Dimensions and specifications
- Model: DN-835W
- Size: 107.0 * 114.0 * 14.0 (mm)
- Input voltage: 24.0 V DC
- Atomization power (atomization amount): 12.0 W (≤ 35mL/H)
- Atomization frequency: 2.4MHz
Product Description
- 1、 Aromatherapy clock integrated model, suitable for various ultrasonic atomization products
- 2、 Equipped with atomized sheet dry burning protection

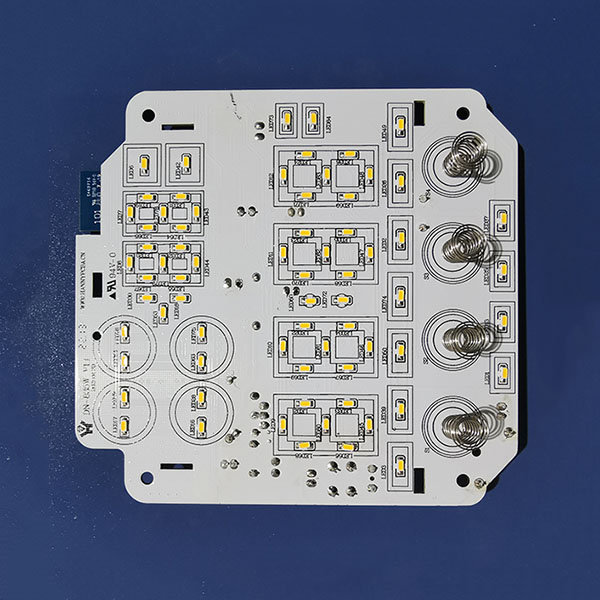

- 3、 The substrate has weather, temperature, week, and time displays, which can be automatically updated after connecting to the network through a WIFI module, integrating aromatherapy with the clock
- 4、 This atomized motherboard has been widely used in the market and meets safety regulations and EMC certification standards

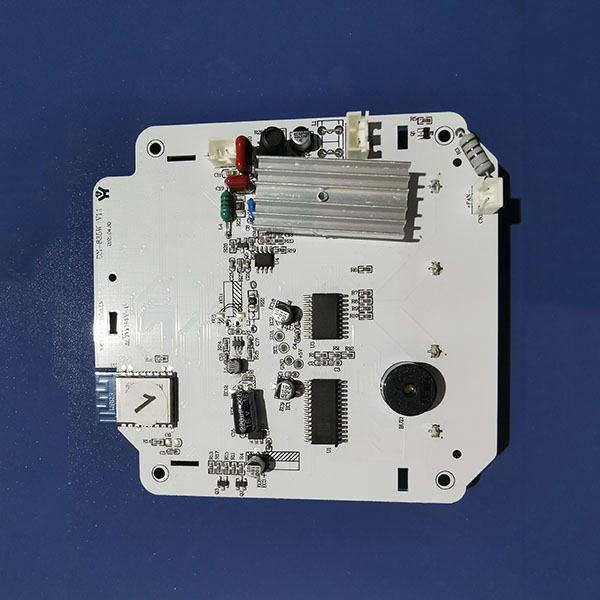

Socket and Pin Position Description
- CN2: Power input (24V DC)
- CN1: Fan output (12V/24V DC)
- Y1: Atomization output
