Dimensions and specifications

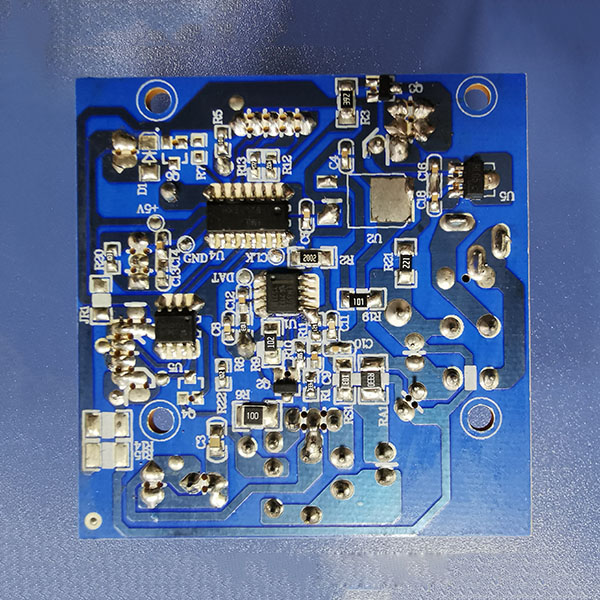

- Model: HY-FL220
- Size: 58.0 * 57.0 * 17.5 (mm)
- Input voltage: 24.0 V DC
- Atomization power (atomization amount): 12.0 W (≤ 35mL/H)
- Atomization frequency: 2.4MHz
Product Description
- 1、 Flame fireplace model, suitable for various ultrasonic atomization products
- 2、 Equipped with atomized sheet dry burning protection
- 3、 CN8 external 24V light strip provides more flexible lighting effects and can be set to flame light effects
- 4、 CN6 external 5V motor, combined with external light strips, can set the fireplace flame effect
- 5、 The substrate has remote control function
- 6、 This atomized motherboard has been widely used in the market and meets safety regulations and EMC certification standards
Socket and Pin Position Description
- CN4: Power input (24V DC)
- CN2: Fan output (12V/24V DC)
- Y1: Atomization output
- CN8: External RGB light strip (24V DC) or external warm light and motor (24V DC)
- CN6: External motor (5V DC)
- CN3: Connect the control board
- GND -- Connect the negative terminal of the keypad
- 5V - Supply power to the keypad+5V
- Other foot positions - signal transmission
