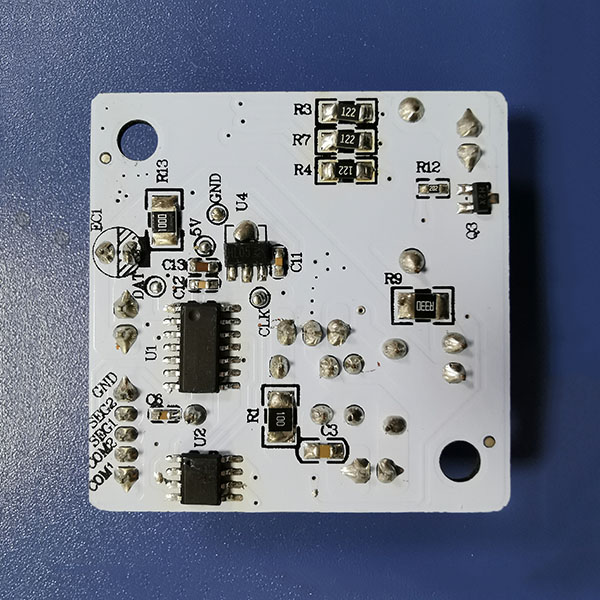

Dimensions and specifications
  • Model: UP009
  • Size: 43.0 * 42.0 * 15.0 (mm)
  • Input voltage: 24.0 V DC
  • Atomization power (atomization amount): 12.0 W (≤ 35mL/H)
  • Atomization frequency: 2.4MHz
Product Description
  • 1、 Mini version, suitable for various ultrasonic atomization products
  • 2、 Equipped with atomized sheet dry burning protection
  • 3、 The board and frame have a small volume and can be used for more models or as atomization components for the entire model
Socket and Pin Position Description
  • CN4: Power input (24V DC)
  • CN2: Fan output (12V/24V DC)
  • CN1: Connect the control board
  • Y1: Atomization output
  • GND -- Connect the negative terminal of the keypad
  • Other foot positions - signal transmission
