Dimensions and specifications
- Model: HY-YL231
- Main control board size: 87.0 * 32.0 * 11.5 (mm)
- Display board size: 58.0 * 25.0 * 7.0 (mm)
- Input voltage: 12V DC
Product Description
- 1、 Universal medical surgical knife
- 2、 There is a battery charging circuit on the display panel, which increases the usability of the battery and is environmentally friendly
- 3、 Widely applied in the market and meeting medical grade standards
- 4、 The surgical knife board complies with safety regulations and EMC certification standards in various countries

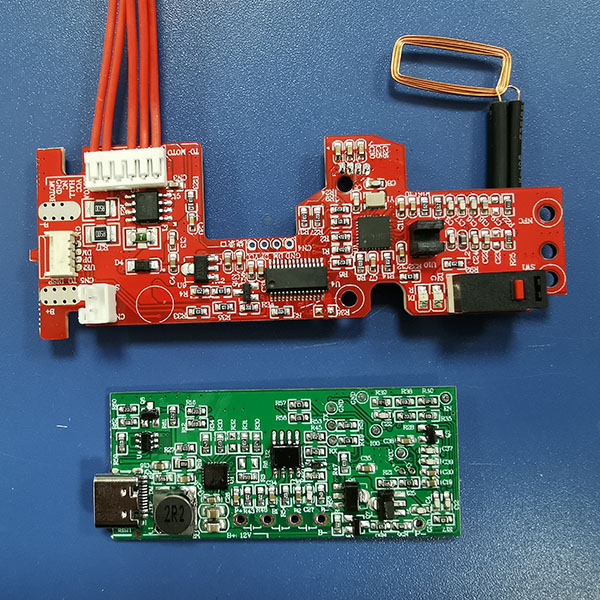

Socket and Pin Position Description
- Main control board:
- B+/B -: Power input (rechargeable battery pack 12V DC)
- L4/L5: Connect NFC (mode update)
- CN3: Connect the motor to the Hall board
- CN1: Connect micro switch (motor initial position positioning)
- CN2: Connect the keypad
- CN5: Connect the display board
- Display board:
- USB1: Connect to the main control board (or charge the battery pack)
- B+/B1/B2/B -/P -: Connect the rechargeable battery pack
- CN1: Connect the display screen
