Dimensions and specifications
- Model: CF2102
- Size: 90.0 * 190.0 * 22.5 (mm)
- Input voltage: 100-240 V AC
Product Description
- 1、 Universal food processor
- 2、 This food processor board has been widely used in the market and meets the safety regulations and EMC certification standards of various countries

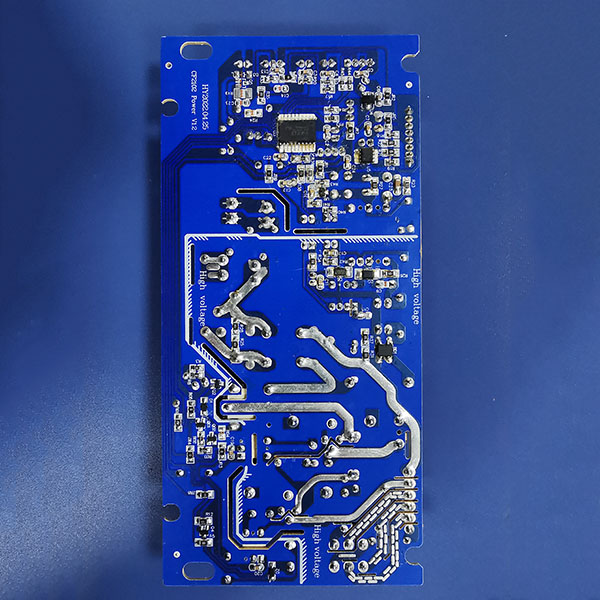

Socket and Pin Position Description
- CN9/CN11: Power input (100-240 V AC)
- PE1/PE2: Grounding wire
- CN2: Connecting the heating element
- CN3: Connect the motor
- CN7: Supply power to the display screen
- CN5: Display screen data communication
- CN4: Power supply for electronic scale board (feeding and weighing)
- CN6: Connect the micro switch (check if the bowl cover is in place)
- RT1: Connect NTC (temperature detection)
- HALL1: Connect Hall
- CN12: Connect micro switch (detect motor)
- CN8: Supply power to the fan
