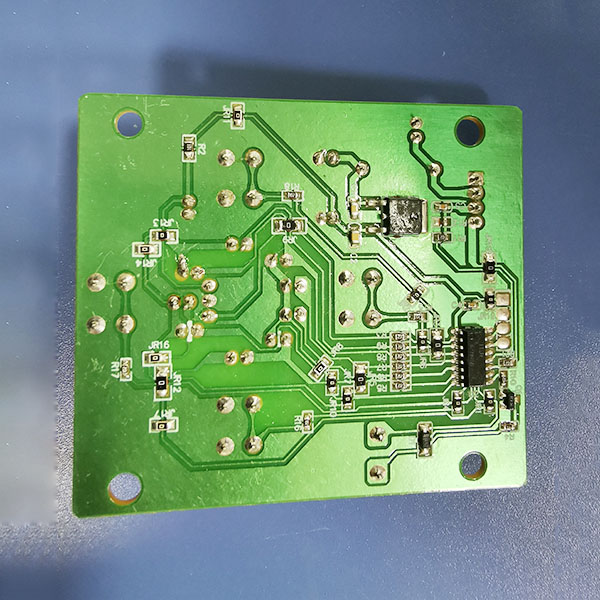

【Origin Pic】
Dimensions and specifications
  • Model: PS-WFRDC
  • Size: 67.5 * 76.0 * 17.0 (mm)
  • Input voltage: 24.0 V DC
Product Description
  • 1、 Economical DC fan
  • 2、 Remote control and button dual control make operation more convenient
  • 3、 The fan board has been applied in the market and meets the safety regulations and EMC certification standards of various countries
Socket and Pin Position Description
  • CN1: Connect the fan motor to the power input (24VDC)
  • GND: The power input shares the negative pole with the motor
  • +24V: Power input and motor share positive pole
  • PWM: Motor PWM working signal
  • OSC: Motor shaking working signal
