Location  Home -> Products  ->  Power board series  ->  DC power supply HY-2436

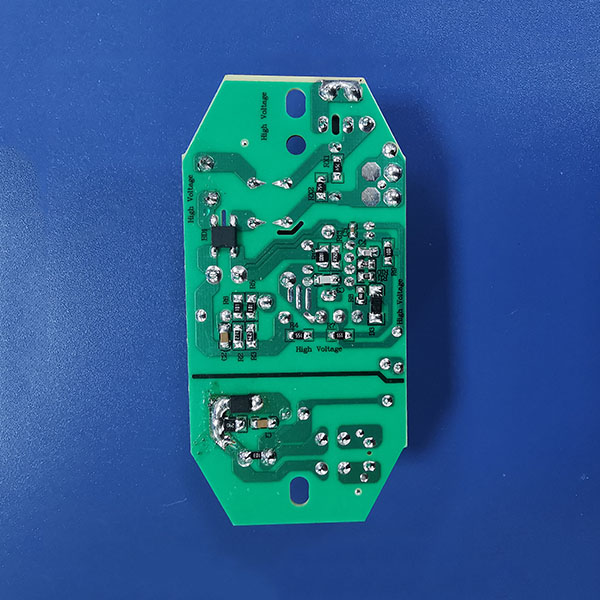

【Origin Pic】
Dimensions and specifications
  • Model: HY-2436
  • Size: 46.0 * 94.0 * 28.0 (mm)
  • Input voltage: 100-240 V AC
  • Maximum output power: 30W (100-120 V AC) 36W (200-240 V AC)
Product Description
  • 1、 Universal AC to DC power supply, suitable for powering small appliances such as aromatherapy machines, humidifiers, DC fans, etc
  • 2、 Strong compatibility, optional output voltage parameters: 12VDC, 24VDC, 28VDC
  • 3、 The power board has been applied in the market and meets safety regulations and EMC certification standards
Socket and Pin Position Description
  • ACL: Power input live wire (100-240 V AC)
  • ACN: Power input neutral wire (100-240 V AC)
  • CN4: Power output (24VDC 1.3A)
