Dimensions and specifications
- Model: HY4WP
- Size: 56.5 * 63.5 * 17.0 (mm)
- Input voltage: 24.0 V DC
- Atomization power (atomization amount): 12.0 W (≤ 35mL/H)
- Atomization frequency: 2.4MHz
Product Description
- 1、 Universal WIFI model, suitable for various ultrasonic atomization products
- 2、 Equipped with atomized sheet dry burning protection

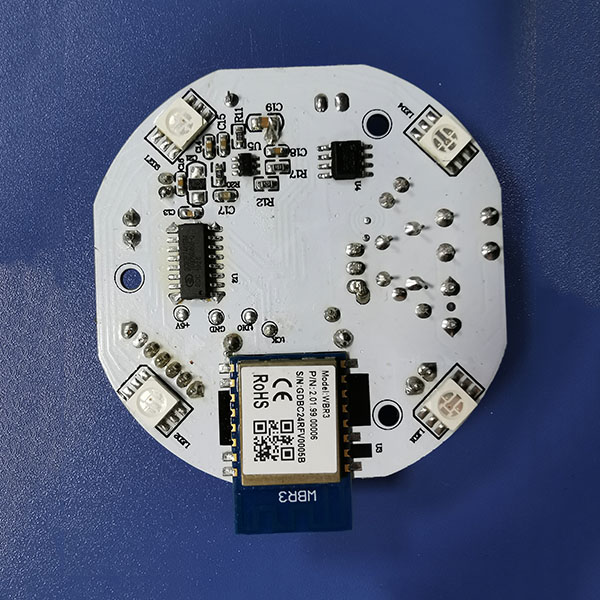

- 3、 Add WIFI module on the substrate, which can be directly controlled by mobile phone for more convenient operation
- 4、 The CN3 socket has a+5V output, which can provide power to the external control board
- 5、 This atomized motherboard has been widely used in the market and meets safety regulations and EMC certification standards
Socket and Pin Position Description
- CN1: Power input (24V DC)
- CN2: Fan output (12V/24V DC)
- Y1: Atomization output
- CN3: Connect the control board
- GND -- Connect the negative terminal of the keypad
- +5V - Supply 5V power to the keypad
- Other foot positions - signal transmission
